Details
Extreme Tools®, Inc. professional series toolboxes include new patents and design features such as a double steel wall drawer front, hutch shelf with built in power strip, no visible spot welds on drawer front, and an 11 gauge steel frame, which makes our product very unique
Specifications
| Manufacturer Specifications | |

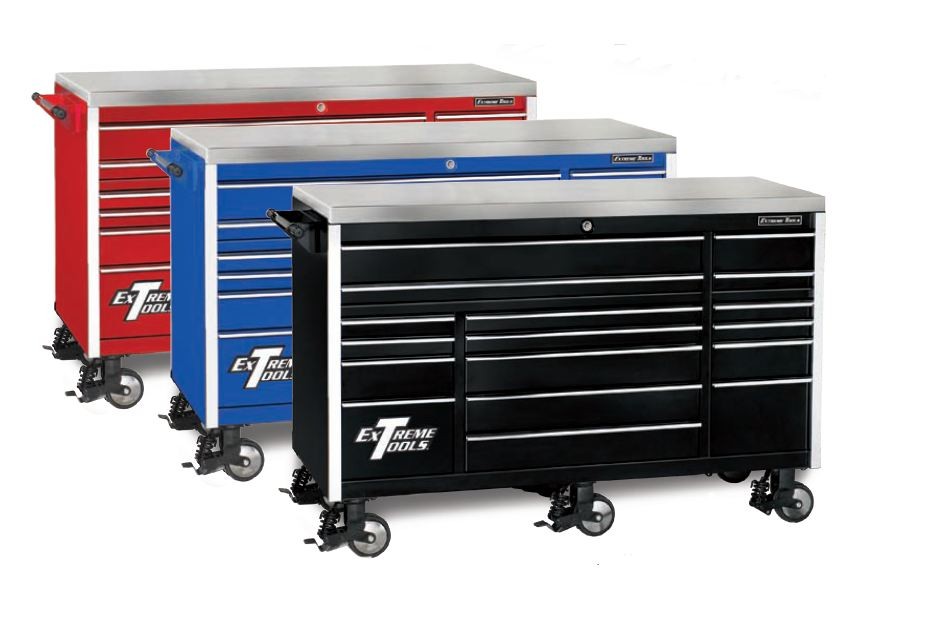

| Model# EX7217RC | 72" Roller Tool abinet Material & Features |
| Frame | 11 gauge steel |
| Shell | 16 gauge 1.5mm steel, powder-coating |
| Drawer fronts | double 1.0mm steel, powder-coating |
| Drawer inners | 1.2mm steel, powder-coating |
| Slide carrier | 1.2mm steel |
| Cab bottom wall | 3.0mm steel for channels |
| Side trims | Aluminum, polished finished |
| Drawer pulls | Extreme style, full-width, aluminum, polished finished |
| Slides (26 pairs) | 3-segment, quick-release, ball-bearing, load rate of 250 lbs. |
| Cabinet side handle (1pc) | Dia tubular, 3.5 mm powder coated |
| Casters (6pcs) | Standard 6 x 2 inch PU casters, four swivel with brakes and two rigid, all rated 950lbs each (Optional Faultless casters rated 1250lbs) |
| Locks | Coded locks & keys |
| Side trims | Aluminum, polished finished |
| Drawer liners | EVA liners |
| Product Dimension W x D x H | 72" x 30" x 44.75" |
| Package Dimension W x D x H | 75.75" x 33.25" x 52.125" |
| Net Weight (est.) | 1132 lbs |
| Gross Weight (est.) | 1302 lbs |
| 17 Drawers | Roller Bearing Glides Rated 300lbs. to 600lbs. Per Drawer |
| UPC Number in Color Black | 892562002710 |
| UPC Number in Color Blue | 892562002741 |
| Capacity | 43,256 cu.in. 11,266 sq.in. |
| DRAWER SIZES ACCORDING TO DRAWER DESIGN: W x D x H | ||
| 50 x 28-1/8 x 4-3/4in (1268 x 713 x 120mm) | 13-3/4 x 28-1/8 x 4-3/4in (351 x 713 x 120mm) |
|
| 50 x 28-1/8 x 2in (1268 x 713 x 50mm) | 13-3/4 x 28-1/8 x 2in (351 x 713 x 50mm) |
|
| 13-3/4 x 28-1/8 x 2in (351 x 713 x 50mm) |
32-3/4 x 28-1/8 x 2in (835 x 713 x 50mm) | 13-3/4 x 28-1/8 x 2in (351 x 713 x 50mm) |
| 13-3/4 x 28-1/8 x 2in (351 x 713 x 50mm) |
32-3/4 x 28-1/8 x 2in (835 x 713 x 50mm) | 13-3/4 x 28-1/8 x 2in (351 x 713 x 50mm) |
| 13-3/4 x 28-1/8 x 4-3/4in (351 x 713 x 120mm) |
32-3/4 x 28-1/8 x 4-3/4in (835 x 713 x 120mm) | 13-3/4 x 28-1/8 x 4-3/4in (351 x 713 x 120mm) |
| 13-3/4 x 28-1/8 x 10-1/4in (351 x 713 x 260mm) |
32-3/4 x 28-1/8 x 4-3/4in (835 x 713 x 120mm) | 13-3/4 x 28-1/8 x 10-1/4in (351 x 713 x 260mm) |
| 32-3/4 x 28-1/8 x 4-3/4in (835 x 713 x 120mm) | ||
Manufacturer Details
Extreme Tools®, Inc. is located in Naperville, IL and was founded by our president Larry Grela in 1999. The business began with a single tool route and quickly grew into 12 mobile tool trucks and a stocking warehouse.
In 2004 Extreme Tools®, Inc. changed direction when it became a tool box manufacturer that designed and engineered a professional line of tool boxes. To help the company expand further Ronald Sidler joined Extreme Tools®, Inc. as a business partner.
Since Extreme Tools®, Inc. became a manufacturer of tool boxes our goal has constantly been to design and build high quality tool boxes for the industrial, automotive, and retail markets at a much lower price than our competitors.
With more than 30 years of working experience and knowledge in the automotive industry Extreme Tools®, Inc. has a proven background to be an innovator and leader in the professional tool storage market. Our toolboxes are made with a higher quality material than other brands, and have more features included in our base price.
Extreme Tools®, Inc. offers such a great product value that the company was featured on the front cover of the Professional Distributor Magazine in 2004.
Shipping Info
We ship all Extreme Tool Chests and Roller Cabinets by truck from the factory in Illinois. If you order either or both of these models, the total shipping charge will be $75.00 to any commercial address in the "lower 48" United States. Additional Services such as residential delivery = additional 20$, Lift Gate= 10$, Notify Charge = 10$
If you have any questions about shipping please do not hesitate to call us at (818) 767-9870
